HAR2 / HAR2-W

HAR2-W

2 Channel High Voltage Amplifier Mainframe

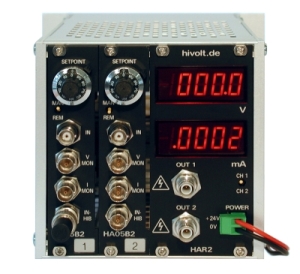

The HAR2 is a mainframe to be equipped with one or two high precision high voltage amplifier modules HA05B2 (3U high, 6HP wide plug-in modules). The channels provide output voltages in the range of –500V to +500V at load current of ±2mA each. The following refers to a HAR2 mainframe equipped with HA05B2 HV amplifier modules.
The output voltage is controlled by a control voltage or set by a 10-turn potentiometer. The control voltage ranges from –10V to +10V, the gain is 50.
Monitor outputs for voltage and current are provided on each channel.
Furthermore, each channel is equipped with a fast inhibit input effectively clamping the output voltage to 0V.
The amplifier channels feature high precision, very high stability and low noise, thereby making the HAR2 well suited even for voltage reference applications.
Both the output voltage and the load current of a selected channel can be displayed simultaneously on two 4-digit LED displays. All amplifier outputs are protected against overload, short circuit and transient overvoltage.
High-Speed versions up to 15kHz bandwidth / 50V/µs slew rate are available on request.
The HAR2 is available as a tabletop or a wall mountable model (HAR2-W).

Features

  • 2 Channels
  • Output ± 500V
  • High Precision
  • High Stability
  • Low Noise
  • Remote On / Off
  • Monitor Outputs
  • Displays for Output Voltage and Current

Applications

  • Electrostatic deflection
  • HV voltage reference
  • Testing
  • Ion guidance

Specifications

Output Voltage -500 V to +500 V
Load Current -2 mA to +2 mA
Gain 50 ±0.2%
Temperature Coefficient 5 ppm/K (typ.)
Stability < ± 100 ppm
Load Regulation < 100 ppm (no load / full load)
Ripple / Noise 10 mVPP / < 1 mVRMS
Digital Panel Meters 4-digit red LED displays
Voltage Monitor -10 - +10V / -500V - +500V ±0.2%
Current Monitor -10 - +10V / -2mA - +2mA ±0.2%
Inhibit Input Amplifier On: -15 V - +1.5 V
Amplifier Off: +2.4 V - +15 V or open
Inhibit Response Time Amplifier On->Off: < 10 µs
Amplifier Off->On: ca. 2.5 ms
Supply Voltage +24 V +20 - +28 VDC, < 100 mA
Supply Voltage +540 V +530 - +550 VDC, < 4 mA
Supply Voltage -540 V -530 - -550 VDC, < 4 mA
Power Bandwidth > 500 Hz
Slew-Rate > 2 V/µs
Supply Voltage 95 - 265 VAC , 47 - 63 Hz, 0.5 ARMS @230 VAC
Operating Temp. 0°C - +40°C
Dimensions (WxHxD) 141x139x264 mm3
Dimensions (HAR2W) 177x134x264 mm3
Weight 1.9 kg
